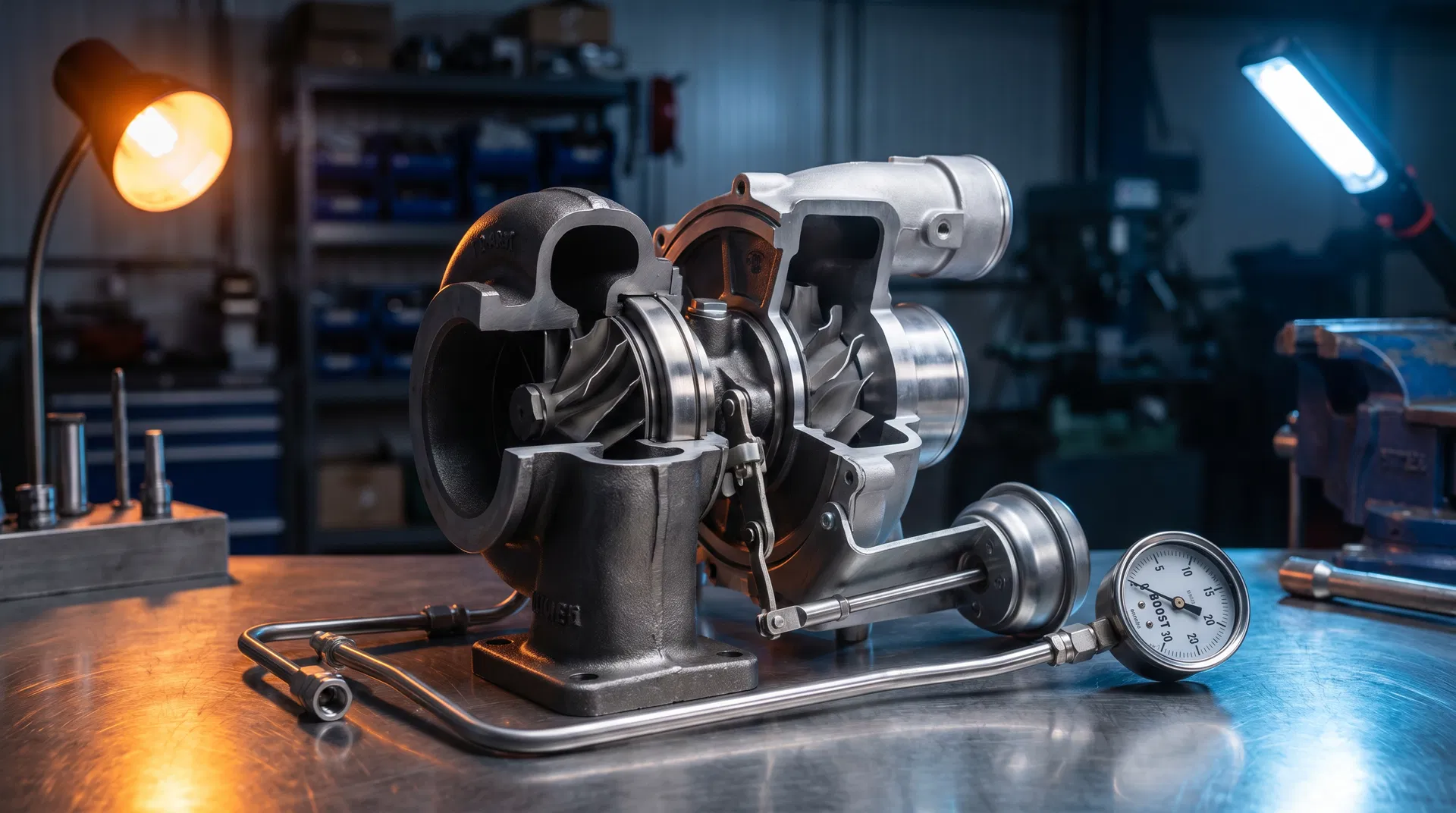

Turbocharger diagnostic
Powertrain System

Turbocharger &
Boost System Diagnostics

Complete diagnostic procedure for heavy-duty diesel turbocharger systems. Covers boost pressure analysis, shaft play measurement, wastegate testing, oil leak diagnosis, and VGT troubleshooting.

Critical Parameters

Boost Pressure
1.5–2.5 bar
Radial Play
< 0.05 mm
Axial Play
< 0.10 mm
Oil Supply
1.5–4.0 bar

Contents

SymptomsSystem SchematicBoost PressureDiagnostic StepsTroubleshootingFailure ModesQuick Reference
Low engine power / poor acceleration
Black smoke under load (low boost)
Blue/white exhaust smoke (oil leak)
High-pitched whine (compressor surge)
Metallic rattle (bearing failure)
Oil in intercooler / charge air cooler

The turbocharger uses exhaust gas energy to drive a turbine wheel, shaft-connected to a compressor wheel that pressurizes intake air. Oil-lubricated journal bearings support the shaft assembly rotating at 80,000–150,000 RPM.

AIR FILTERClean air intakeCOMPRESSORPressurizes air80k-150k RPMSHAFTTURBINEExhaust driven500-700 °C EGTCHRA / BearingsOil cooled + lubricatedINTERCOOLERCharge Air CoolerHOT CHARGE AIRINTAKE MANIFOLD1.5-2.5 bar boostENGINECombustionCylindersEXHAUST GASEXHAUSTDPF / SCR / TailWASTEGATEBoost controlOIL SUPPLY1.5-4.0 barOIL RETURNGravity drain

Boost Pressure vs Engine Speed — Typical HD Diesel

3.02.01.00.50.0BOOST (bar)ENGINE SPEED (RPM)Idle600–8000–0.2 barPart Load1000–14000.5–1.2 barFull Load1400–18001.5–2.5 barRated Power1800–21002.0–3.0 barWASTEGATE OPENS
1

Boost Pressure Measurement

Measurement: Boost gauge at intake manifold, full load at rated RPM
Expected values:
1.5–2.5 bar = Normal (engine-specific, check OEM data)
Below 1.0 bar at full load = Low boost fault

Boost pressure is the primary indicator of turbocharger health. Always measure at steady-state full load, not during transient acceleration.

2

Intake System Leak Test

Measurement: Pressurize intake to 1.5 bar with shop air, listen for leaks
Expected values:
No pressure drop over 30 seconds = Sealed system
Pressure drops = Leak in hose, clamp, or intercooler core

Use soapy water spray at all connections. Common leak points: intercooler hose clamps, charge air cooler end tanks, intake manifold gasket.

3

Shaft Radial Play

Measurement: Dial indicator on compressor wheel, push perpendicular to shaft axis
Expected values:
Below 0.05 mm = Normal
Above 0.08 mm = Bearing wear — turbo rebuild required
Never spin the turbo by hand with compressed air — bearings require oil pressure for lubrication.
4

Shaft Axial Play

Measurement: Dial indicator on shaft end, push/pull along shaft axis
Expected values:
Below 0.10 mm = Normal
Above 0.15 mm = Thrust bearing wear
5

Exhaust Backpressure

Measurement: Pressure gauge before turbine inlet at rated engine speed
Backpressure ratio = P_exhaust / P_atmospheric
Expected values:
Below 40 kPa (0.4 bar) = Normal
Above 40 kPa = Exhaust restriction — check DPF, catalyst, exhaust pipe
6

Oil Supply Pressure at Turbo

Measurement: Pressure gauge at turbo oil inlet fitting, engine at idle
Expected values:
1.5–4.0 bar = Normal
Below 1.0 bar = Insufficient lubrication — check oil pump, filter, supply line
Running turbo with insufficient oil pressure causes bearing failure within minutes.
7

Wastegate Actuator Test

Measurement: Apply 1.0 bar to actuator diaphragm, measure rod travel
Expected values:
8–12 mm rod travel = Normal actuator function
No movement = Diaphragm leak or stuck linkage
Do not exceed 2.0 bar on wastegate actuator — diaphragm damage will occur.

Interactive Turbo Troubleshooting

step 1

Is the engine producing less power than expected (low boost, black smoke, or turbo lag)?
