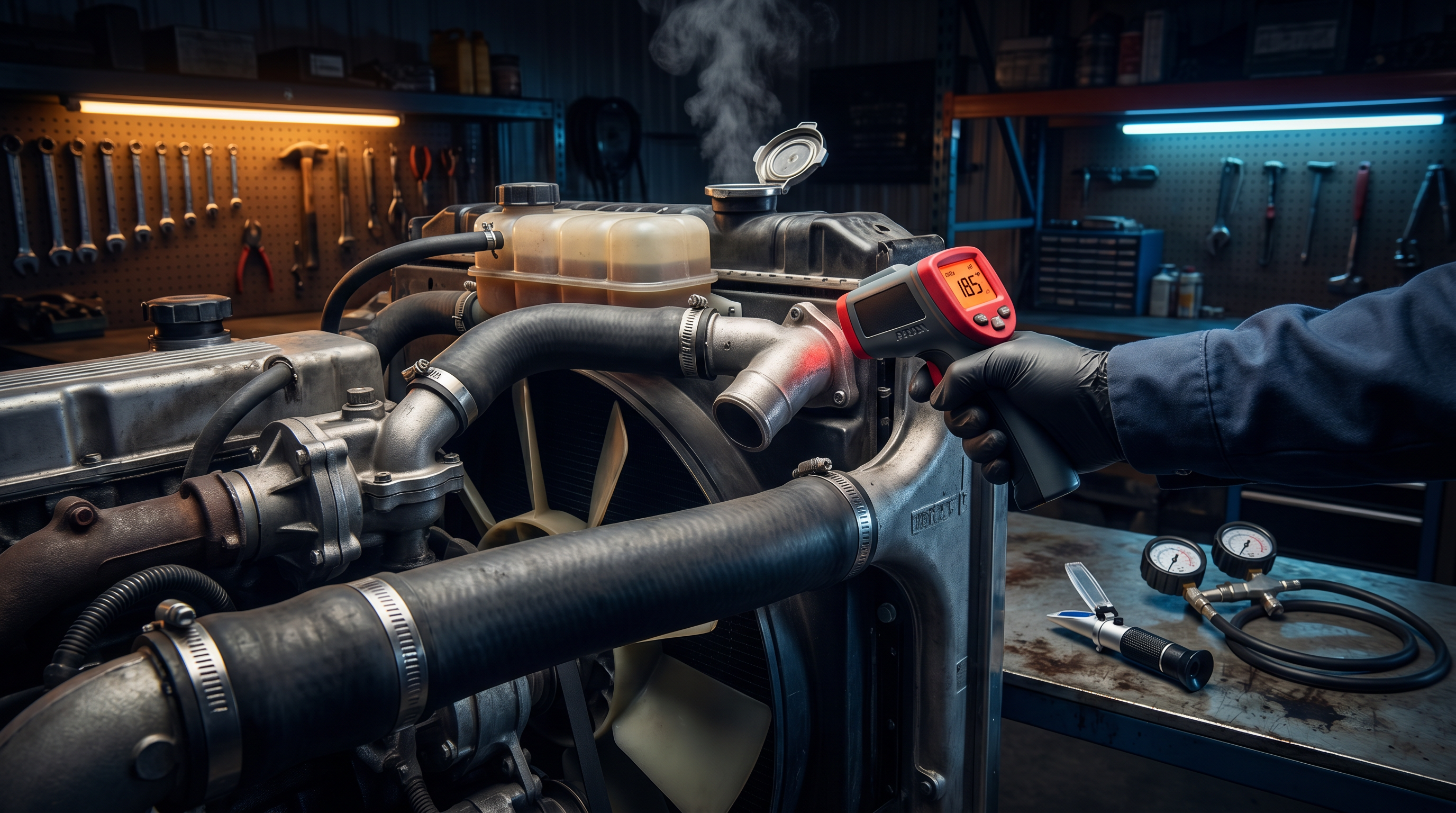

Cooling system diagnostic
Cooling / Thermal

Cooling System
Diagnostics

Complete diagnostic procedure for heavy-duty diesel engine cooling systems. Covers thermostat testing, pressure testing, coolant flow analysis, fan clutch diagnosis, and systematic overheating troubleshooting.

Critical Parameters

Operating Temp
80–95 °C
System Pressure
1.0 bar
Thermostat Opens
82–88 °C
Coolant Mix
50/50 ratio

Contents

SymptomsCircuit SchematicTemperature ZonesDiagnostic StepsTroubleshootingFailure ModesQuick Reference
Engine overheating (> 100 °C)
Coolant loss without visible leak
Engine running cold (< 75 °C)
White exhaust smoke
Milky oil (coolant in oil)
Coolant bubbling in expansion tank

The cooling system is a pressurized closed loop. The water pump circulates coolant through the engine block water jackets, where it absorbs combustion heat. The thermostat controls flow to the radiator — when closed (cold engine), coolant bypasses the radiator for faster warm-up. When open, hot coolant flows through the radiator where it is cooled by airflow and the fan.

Heavy-Duty Diesel Cooling Circuit Schematic

ENGINE BLOCKWater jackets80–95 °C operatingTHERMOSTATOpens 82–88 °CRADIATORCross-flowHot → CoolHOTCOOLED COOLANT RETURNWATER PUMPBelt-drivenBYPASS (thermostat closed — cold engine)FANViscous / ElectricEngages > 95 °CEXPANSIONTANKPressure cap 1.0 barHEATER CORECabin heatingEGR COOLERExhaust gas coolingTECT Sensor

Engine Coolant Temperature Operating Zones

COLD< 60 °CWARM-UP60–80 °COPERATING80–95 °C (optimal)HOT95–105 °COVERHEAT> 105 °C STOP!THERMOSTAT OPENS (82–88 °C)FAN ENGAGES (~95 °C)
Why 80–95 °C?

Optimal combustion efficiency, minimal thermal stress on components, proper oil viscosity for lubrication, and correct clearances between pistons and cylinder liners. Running below 80 °C increases fuel consumption by up to 10% and accelerates engine wear due to incomplete combustion and acid formation.

Above 105 °C — Immediate Action

Risk of head gasket failure, cylinder head warping, piston seizure, and catastrophic engine damage. Reduce load immediately, increase RPM slightly (improves water pump flow), turn on cabin heater to maximum (acts as secondary radiator). If temperature continues rising, stop the engine.

1

Coolant Level Inspection

Measurement: Visual check of expansion tank with engine cold
Expected values:
Between MIN and MAX marks = Normal
Below MIN = Coolant loss — investigate source
NEVER open the pressure cap on a hot engine. Pressurized coolant at 100+ °C will flash to steam and cause severe burns.
2

Cooling System Pressure Test

Measurement: Attach pressure tester to expansion tank, pump to 1.0 bar
Expected values:
Holds 1.0 bar for 10 minutes = System sealed
Pressure drops = Leak present — inspect all connections

While pressurized, inspect all hoses, radiator, water pump weep hole, thermostat housing, heater core connections, and EGR cooler. Look for drips, wet spots, or steam.

3

Pressure Cap Test

Measurement: Cap tester — pump to rated pressure
Boiling point elevation ≈ 20 °C per 1.0 bar above atmospheric
Expected values:
Cap holds rated pressure (1.0 bar typical) = Normal
Cap releases below rated pressure = Replace cap

A weak pressure cap lowers the boiling point of coolant. At 1.0 bar, the boiling point rises from 100 °C to approximately 121 °C.

4

Thermostat Bench Test

Measurement: Remove thermostat, suspend in heated water with thermometer
Expected values:
Starts opening at 82–88 °C (check OEM spec) = Normal
Stuck closed = No opening → overheating
Stuck open = Already open when cold → cold running

The wax-element thermostat expands when heated, pushing the valve open. Full opening should occur approximately 10 °C above the initial opening temperature.

5

Fan Clutch / Electric Fan Test

Measurement: Observe fan behavior as engine warms past 95 °C
Expected values:
Viscous: fan locks up when hot, spins freely when cold = Normal
Electric: fan runs when temp exceeds threshold = Normal
No fan engagement when hot = Fan clutch or relay fault
6

Combustion Gas Leak Test

Measurement: Chemical block test fluid in expansion tank funnel, engine running at operating temperature
Expected values:
Fluid stays blue = No combustion gas leak
Fluid turns yellow/green = Combustion gas in coolant → head gasket failure
This test detects CO2 in the coolant. A positive result strongly indicates head gasket failure, cracked cylinder head, or cracked liner.
7

Coolant Concentration Test

Measurement: Refractometer on coolant sample
Freeze protection: 50% = -37 °C, 40% = -24 °C, 60% = -52 °C
Expected values:
50/50 water/glycol mix = Freeze protection to -37 °C
Below 40% glycol = Insufficient freeze and corrosion protection
Above 60% glycol = Reduced heat transfer capacity

Interactive Cooling System Troubleshooting

step 1

Is the engine overheating (coolant temperature > 100 °C or warning light active)?
