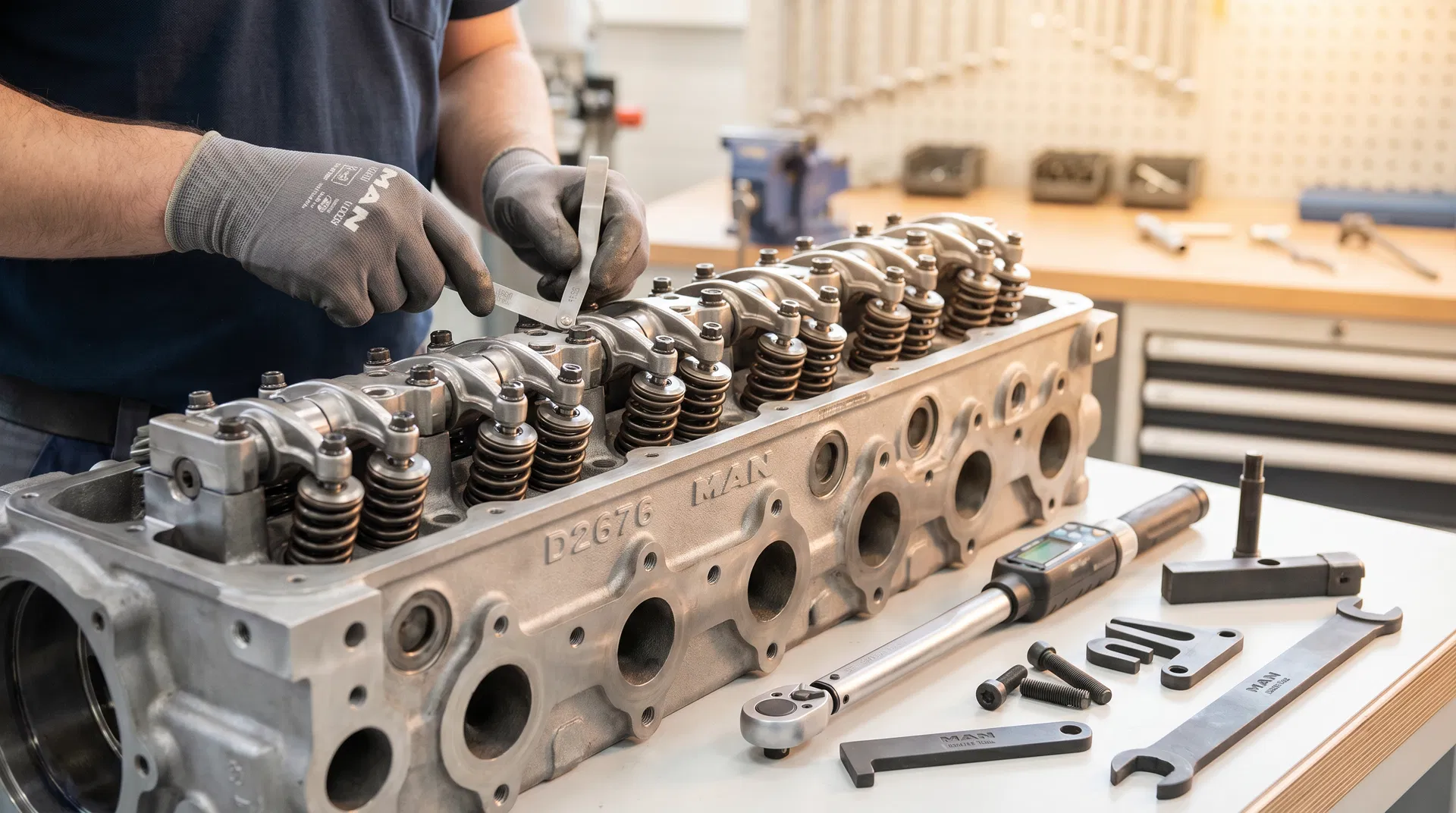

D2676 Valve Adjustment
HomeMAN D2676Repair Procedures
MAN D2676 LOH — Repair Manual

Repair Procedures & Torque Specs

Step-by-step repair procedures sourced from the official MAN D2676 LOH Engine Repair Manual Supplement. Covers valve clearance, EVB adjustment, common rail components, EDC17 control unit, and AGR leak testing.

VALVE CLEARANCE ADJUSTMENT

Inlet: 0.50 mm | Exhaust: 0.80 mm | Lock nut: 45 Nm | Engine < 50°C

EVB EXHAUST VALVE BRAKE ADJUSTMENT

EVB clearance: 0.60 mm | Counter-holder lock nut: M14×1-8.8 = 45 Nm

RAIL PRESSURE SENSOR REPLACEMENT

Thread: M18×1.5 | Torque: 70 ± 5 Nm | Sealant: Bosch Fett FT1V27

PRESSURE LIMITING VALVE REPLACEMENT

Thread: M20×1.5 | Torque: 100 ± 10 Nm | Sealant: Bosch Fett FT1V27

EDC17 CONTROL UNIT REMOVAL / INSTALLATION

4 connectors | 8 mounting bolts M6×30-10.9 | Two-stage torque: 1.5 → 10 Nm

AGR MODULE LEAK TEST

Test pressure: 3 bar | Hold time: 30 min | Max drop: 0.1 bar | Both sides

TORQUE SUMMARY

FASTENERTHREADTORQUENOTES
Rail Pressure SensorM18×1.570 ± 5 NmApply Bosch Fett FT1V27
Pressure Limiting ValveM20×1.5100 ± 10 NmApply Bosch Fett FT1V27
EDC Mounting — Pass 1M6×30-10.91.5 ± 0.5 NmFinger-tight first
EDC Mounting — Pass 2M6×30-10.910 ± 2 NmFinal torque, star pattern
Cable Harness BracketM6×16-10.915 NmSingle pass
Valve Lock Nut (Inlet/Exhaust)M10×1-8.845 NmHold adjusting screw
EVB Counter-Holder Lock NutM14×1-8.845 NmHold counter-holder
