Powertrain System
Diesel Engine
Diagnostics Guide

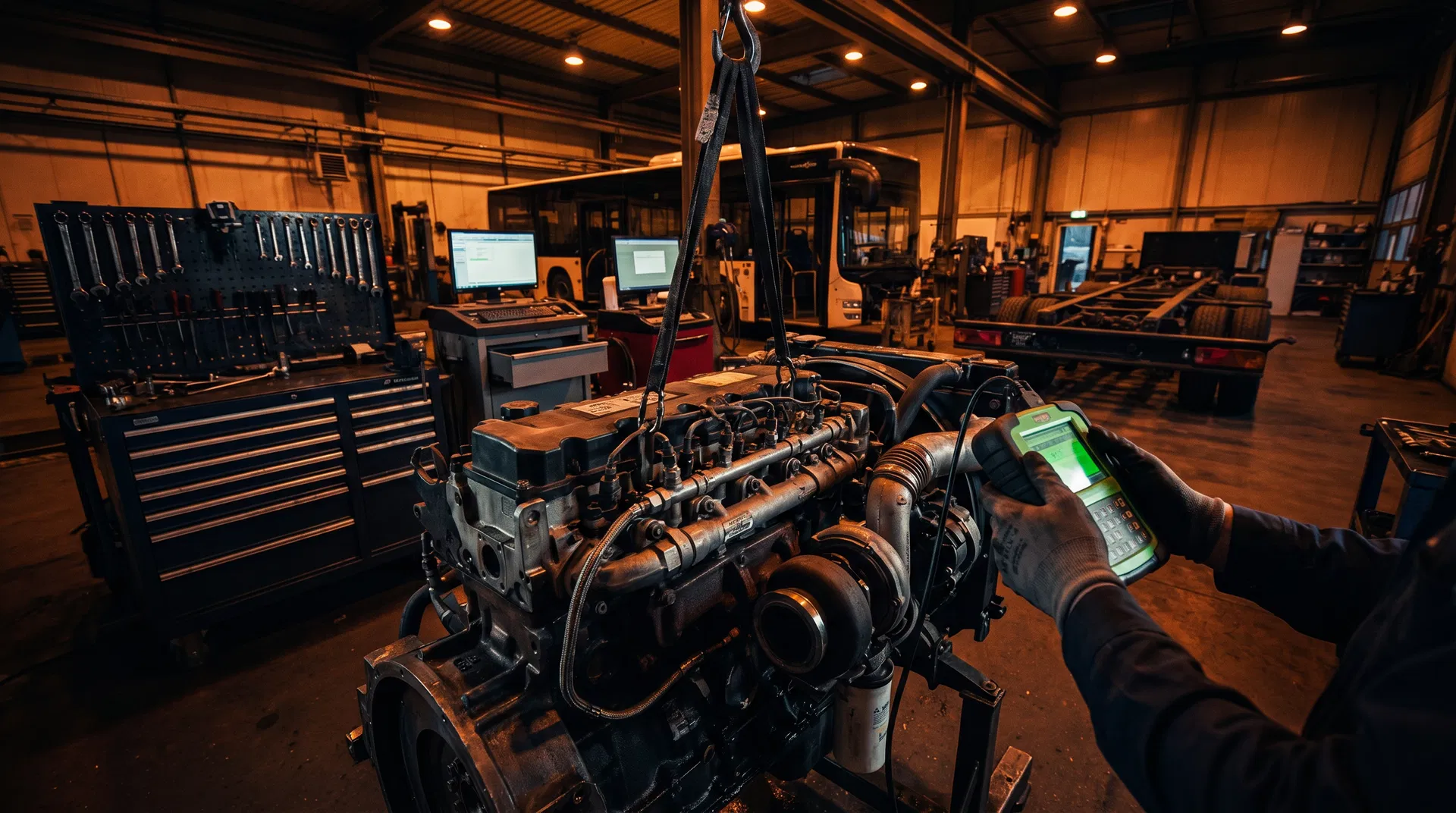

Common rail fuel injection, turbocharger, and emissions system diagnostics (DPF, EGR, SCR/AdBlue). All values in metric/SI standard.
Excessive black/white/blue smoke from exhaust
Loss of power or turbo lag
Rough idle or engine misfiring
Check Engine Light (MIL) illuminated
Increased fuel consumption
DPF regeneration warning active
AdBlue / DEF warning light ON
Engine enters limp mode (derated power)
Modern diesel engines in heavy-duty buses use common rail direct injection (CRDI) operating at pressures up to 2500 bar, variable geometry turbochargers (VGT) for optimal boost across the RPM range, and a multi-stage emissions aftertreatment system comprising an exhaust gas recirculation (EGR) valve, diesel particulate filter (DPF), and selective catalytic reduction (SCR) with AdBlue/DEF injection. These systems are electronically controlled by the engine ECU and monitored via OBD-II / J1939 CAN bus protocols.
Common Rail Fuel Injection
- Low-pressure supply pump (3-7 bar)
- High-pressure pump (up to 2500 bar)
- Common rail accumulator
- Piezo or solenoid injectors
- Rail pressure sensor + regulator
- Fuel temperature sensor
Turbocharger (VGT)
- Compressor wheel (intake side)
- Turbine wheel (exhaust side)
- Variable geometry vanes
- Electronic VGT actuator
- Boost pressure sensor (MAP)
- Charge air cooler (intercooler)
Emissions Aftertreatment
- EGR valve + EGR cooler
- Diesel oxidation catalyst (DOC)
- Diesel particulate filter (DPF)
- SCR catalyst + AdBlue injector
- Ammonia slip catalyst (ASC)
- NOx sensors (upstream + downstream)
System Schematic
1
Fuel Rail Pressure — Key ON / Engine OFF
Measurement: OBD-II scanner reading fuel rail pressure sensor
Expected values:
Priming pressure 30–50 bar within 3 seconds
Below 25 bar = Fuel supply pump failure or fuel line leak
2
Fuel Rail Pressure — Engine at Idle
Measurement: OBD-II live data: actual vs. desired rail pressure
Expected values:
250–350 bar at idle (engine-specific)
Deviation > 50 bar from target = High-pressure pump wear or injector leak-back
Common rail pressures are extremely dangerous. Never loosen fuel lines with the engine running.
3
Injector Leak-Back Test
Measurement: Measure fuel return volume per injector using graduated cylinders
Expected values:
< 40 mL/min per injector at idle
> 80 mL/min = Injector internal leak, replace injector
Excessive injector return flow reduces rail pressure and causes rough running. Compare all injectors — the highest-flow unit is the likely culprit.
4
Injector Balance Rate / Correction Factor
Measurement: OBD-II scanner: injector correction values per cylinder
Correction = Actual_injection_qty − Desired_injection_qty [mg/stroke]
Expected values:
Correction within +/- 3.0 mg/stroke
Correction > +/- 5.0 mg/stroke = Injector drift, recalibration or replacement needed
Fuel Pressure Operating Ranges
3–7 bar
Supply (LP)
Feed pump
30–50 bar
Priming
Key ON
250–350 bar
Idle
Engine running
1600–2500 bar
Full Load
Max power
5
Boost Pressure — Full Load
Measurement: OBD-II live data: actual vs. desired boost pressure
Expected values:
Target boost 1.5–2.5 bar (gauge) depending on engine
Below target by > 0.3 bar = Boost leak, VGT actuator fault, or wastegate stuck open
6
VGT Actuator Position
Measurement: OBD-II: VGT actual vs. commanded position (%)
Expected values:
Actual within 5% of commanded position
Deviation > 10% = VGT vane sticking (carbon/soot buildup) or actuator failure
Variable geometry turbochargers adjust vane angle to optimize boost across the RPM range. Soot buildup on vanes is the most common failure mode.
7
Turbo Shaft Play Inspection
Measurement: Manual inspection with turbo intake removed
Expected values:
Axial play < 0.05 mm
Radial play < 0.10 mm
Excessive play = Bearing wear, turbo replacement required
Oil starvation is the primary cause of turbo bearing failure. Always check oil supply line for blockage.
Turbocharger Performance Indicators
80,000–150,000
Shaft Speed
RPM
500–700
Exhaust Temp In
deg C
40–60
Charge Air Temp
deg C (post-IC)
2.5–3.5
Pressure Ratio
:1
8
EGR Valve Function Test
Measurement: OBD-II: commanded vs. actual EGR position
EGR_rate = (Recirculated_exhaust / Total_intake) x 100 [%]
Expected values:
EGR opens/closes within 1 second of command
Stuck open = Excessive NOx reduction but rough idle, black smoke
Stuck closed = High NOx emissions, possible MIL
9
DPF Differential Pressure
Measurement: OBD-II: DPF differential pressure sensor reading
Expected values:
< 10 kPa at idle = Normal soot loading
10–15 kPa = Regeneration needed
> 20 kPa = DPF critically blocked, forced regen or replacement
The DPF traps particulate matter (soot) from exhaust. Periodic regeneration burns off accumulated soot at temperatures above 600 deg C.
10
DPF Regeneration Verification
Measurement: OBD-II: exhaust temperature sensors (pre-DPF and post-DPF)
Expected values:
Pre-DPF temperature during regen: 550–650 deg C
Post-DPF temperature: 50–100 deg C above pre-DPF
Below 500 deg C = Regen not achieving burn-off temperature
DPF regeneration produces extremely high exhaust temperatures. Ensure adequate ventilation and keep combustibles away from the exhaust outlet.
11
SCR / AdBlue Dosing Verification
Measurement: OBD-II: AdBlue injection rate and NOx sensor readings
NOx_conversion_eff = (1 − NOx_downstream / NOx_upstream) x 100 [%]
Expected values:
AdBlue consumption approx. 3–5% of fuel consumption
Downstream NOx < 0.4 g/kWh (Euro VI)
Above 0.4 g/kWh = Insufficient dosing, faulty injector, or crystallized nozzle
SCR uses a 32.5% urea solution (AdBlue/DEF) injected into the exhaust stream. The urea decomposes into ammonia (NH3) which reacts with NOx over the catalyst to produce N2 and H2O.
12
AdBlue Quality Check
Measurement: Refractometer or OBD-II AdBlue quality sensor
Expected values:
Urea concentration 31.8–33.2% (nominal 32.5%)
Below 30% or above 35% = Diluted or contaminated AdBlue, drain and refill
Never mix AdBlue with water or other fluids. Contaminated AdBlue can destroy the SCR catalyst — replacement cost exceeds 3000 EUR.
Exhaust Temperature Zones
400–600
Turbo Outlet
deg C
250–450
DOC Inlet
deg C
550–650
DPF Regen
deg C
250–450
SCR Optimal
deg C
> 200
AdBlue Inject
deg C
Quick Reference — Diesel Engine Diagnostics
| Test | Expected Value | Fault Indication |
|---|---|---|
| Rail pressure (prime) | 30–50 bar | < 25 bar = supply pump fault |
| Rail pressure (idle) | 250–350 bar | > 50 bar deviation = HP pump/injector |
| Injector leak-back | < 40 mL/min | > 80 mL/min = internal leak |
| Injector correction | +/- 3 mg/stroke | > +/- 5 mg = injector drift |
| Boost pressure | 1.5–2.5 bar gauge | > 0.3 bar below target = leak/VGT |
| VGT position | Within 5% of cmd | > 10% deviation = sticking |
| Turbo shaft play | Axial < 0.05 mm | Excessive = bearing wear |
| EGR response | < 1 s response | Stuck = carbon fouling |
| DPF diff. pressure | < 10 kPa idle | > 20 kPa = blocked |
| DPF regen temp | 550–650 deg C | < 500 deg C = regen failure |
| AdBlue rate | 3–5% of fuel | Low rate = dosing fault |
| NOx downstream | < 0.4 g/kWh | Above = SCR efficiency low |
| AdBlue conc. | 31.8–33.2% | Outside = contaminated |
Exhaust Smoke Color — Diagnostic Aid
Black Smoke
Incomplete combustion — excess fuel or insufficient air
- • Clogged air filter
- • Turbo underboost
- • Injector over-fueling
- • EGR stuck open
- • Intake restriction
White Smoke
Unburned fuel or coolant entering combustion chamber
- • Low compression
- • Faulty glow plugs (cold start)
- • Injector timing off
- • Head gasket leak (coolant)
- • Cracked cylinder head
Blue Smoke
Engine oil burning in combustion chamber
- • Worn piston rings
- • Valve stem seal failure
- • Turbo oil seal leak
- • Crankcase overpressure
- • Excessive oil level
